1970 Porsche 911S

This page is devoted to my 1970 Porsche 911S. It's mostly original, and getting more so every day. The following items are still known to be non-standard on it.

  • 1972 RS style front bumper - missing black trim strip
  • Blackened horn grills
  • Stainless-steel exhaust pipes
  • Non-standard sun visors (I have obtained a pair - just need to fit them!)

Return to my home page

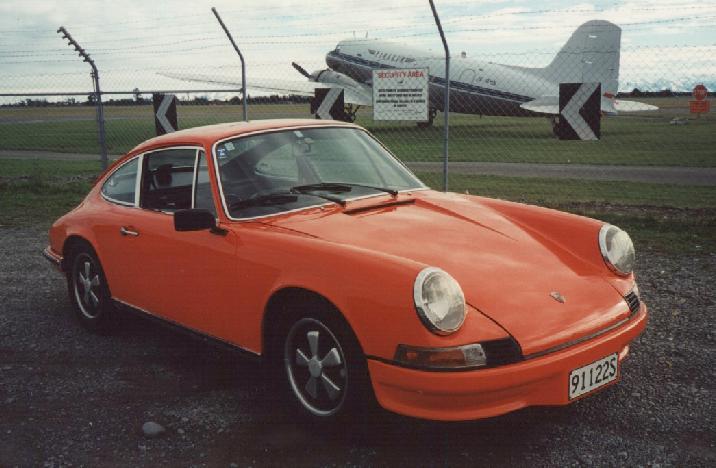

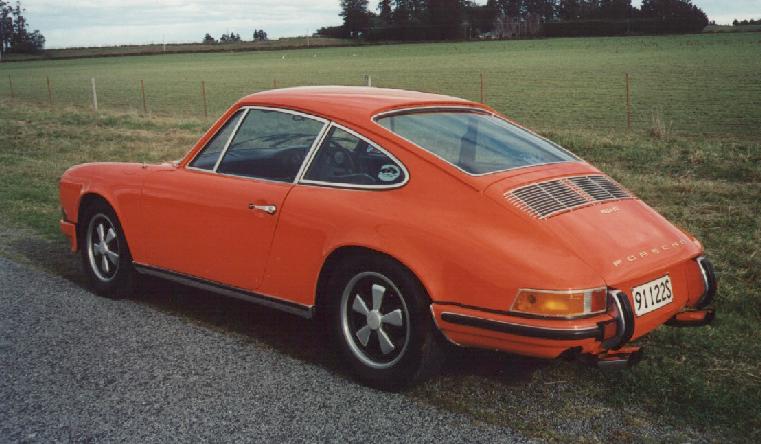

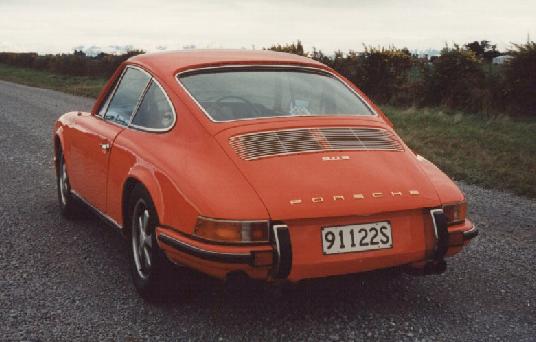

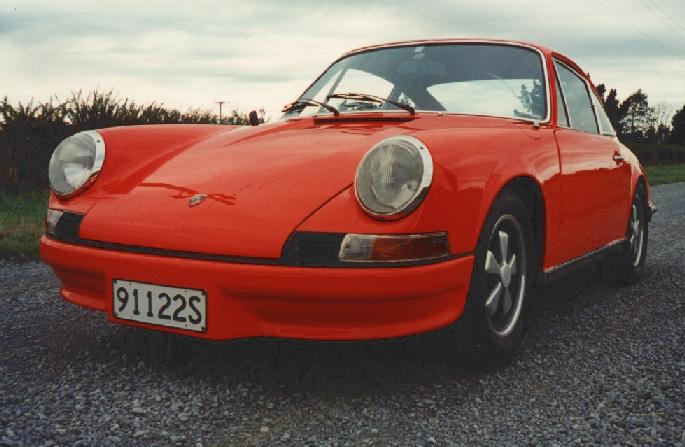

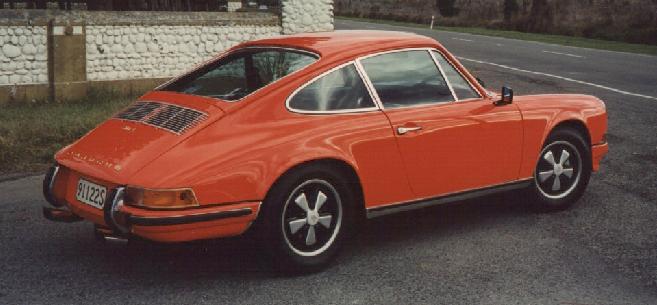

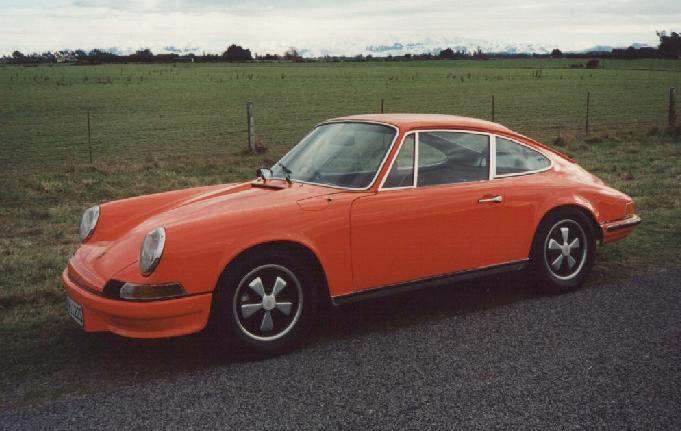

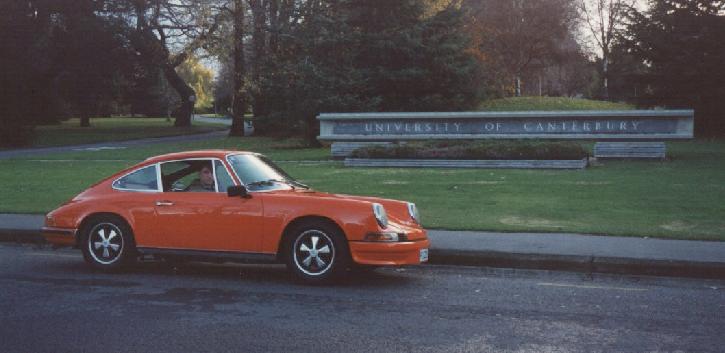

Views of the car

[Front-left (close)] [Front-right]
[Right] [Right-rear]
[Left-rear (close)] [Front-left]
[Left-rear]

Interesting specifications

  • 2195 cc displacement
  • 6 cylinder boxer engine, air cooled, mounted behind the rear axle
  • Inclined overhead valves, driven by rockers
    off a single camshaft for each back of cylinders
  • 84 mm x 66 mm bore and stroke
  • 180 hp DIN (200 hp sae) @ 6500 rpm (7200 redline) in standard tune
  • Compression ratio 9.8:1
  • Dry sump lubrication, holding 8 litres of oil
  • Weight 2095 lb
  • Four wheel ventilated disc brakes, with aluminium calipers
  • 5 speed all synchromesh, getrag layout
  • Bosch mechanical fuel injection @ 240 psi
  • Quarter mile in 14.9s
  • Top speed 143 mph
  • 0-60 mph approx 7.5s
  • Front and rear anti-roll bars
  • Bridgestone RE-71 205/60
  • 6x15 alloy Fuchs rims
  • Lightened steel flywheel
  • Light weight, alloy pressure plate
  • Short-shift gear change kit
  • K&N air filter

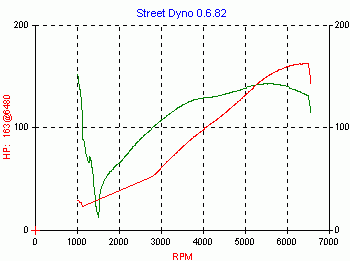

Here is the torque/power curve, measured using StreetDyno software.

Other Porsche things

I am a paid-up member of the Porsche Club New Zealand.

I had the idea to design a head-rest mount for a video camera. Fellow Porsche club members built the unit, and here are some digitised movies that I have made with it. The awesome sound of the 2.2S motor is best experienced in hi-fi stereo.


Martin van den Nieuwelaar, Last updated 17 Jul 2002
